Pinnacle SL300 – Home Solutions

Going up? The Pinnacle SL300 is here to help you take that step towards accessing every floor in your home. With a lifting capacity of 300 lbs, the SL300 provides riders with the confidence to go up and down their stairs safely and comfortably.

Schedule Free In-Home Assessment
Call 603-893-1523

Key Features & Benefits

Essential features designed for safe, efficient, and comfortable stair navigation with the Pinnacle SL300.

No grease or lubrication equals no mess! Cleaner for you, your home, and pets.

Efficient motor with a nylon polymer gear/worm drive provides up to 60 up and down cycles on batteries during a power outage.

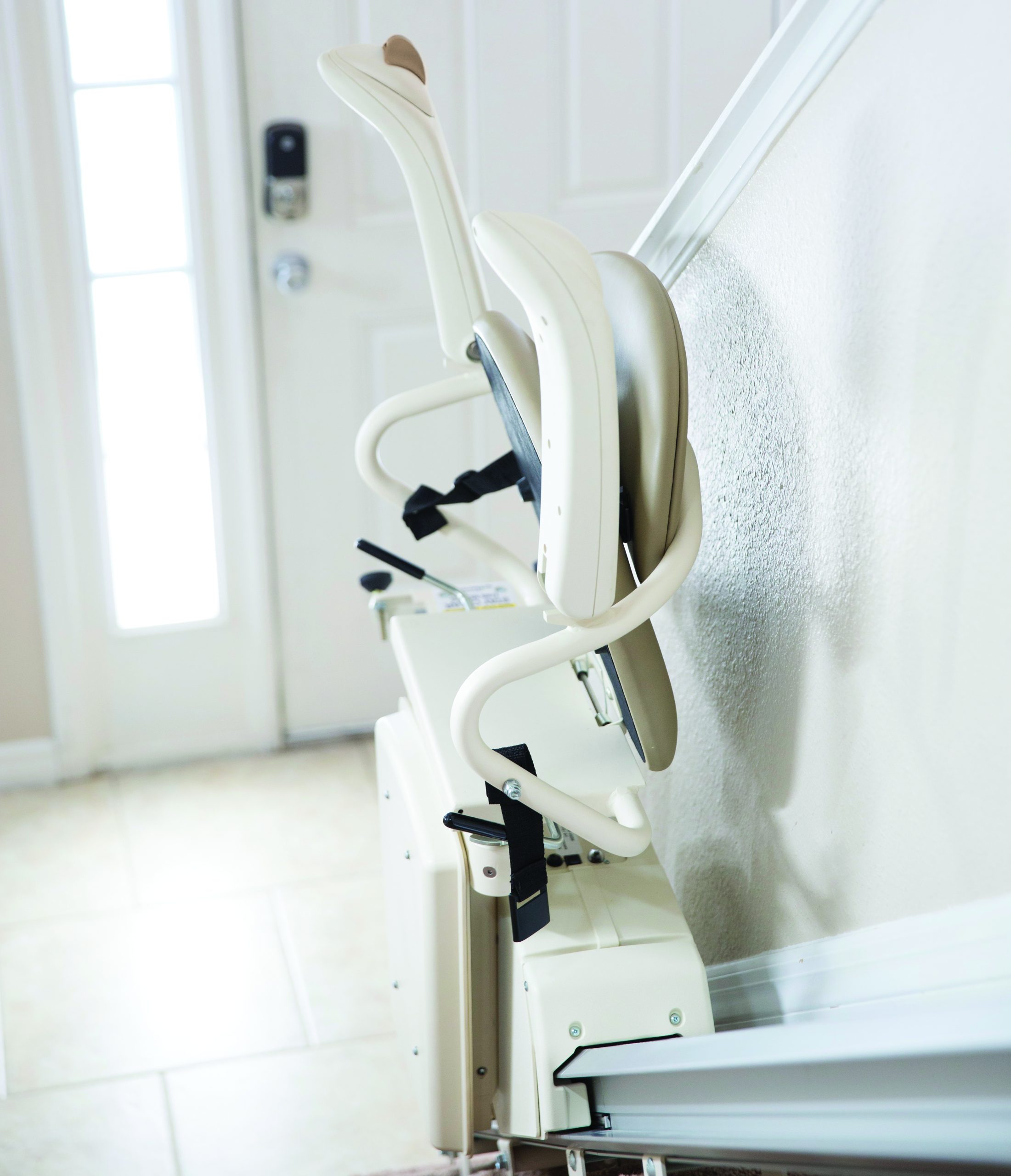

Narrow staircase? No problem. When folded, the SL300 is the most compact stairlift in the industry, with the rail mounting 1” from the wall and standing at 3” tall to help keep out of sight.

Smooth, efficient power seat swivel and power footrest options are available for easy mounting and dismounting.

Assembled in the USA

Schedule Free In-Home Assessment

KEY FEATURES

Pinnacle SL300 Additional Features

  • The over-sized worm gear offers greater stability
  • Power seat swivel and power footrest options for smoother, easier seating and standing
  • Lubrication-free keeps you, your stairs, and even your pets free from a mess
  • Symmetrical design provides industry’s most compact folded width
  • Operable in a power outage—up to 60 trips!
  • Safety sensors in the footrest and optional in the chassis will stop the lift if it meets an obstruction
Schedule Free In-Home Assessment

Technical Overview

Pinnacle SL300 Technical Specifications

Weight Capacity

300 lb

Seat Size
  • Seat: 19″ W x 16″ D
  • Back: 16.5 W x 9.5″ H

Footrest Size

12.6″ x 14.8″

Speed

20 FPM

Folded Width
  • 11″ from wall
  • 13.6″ with folding rail

Track Length

15’6″ (standard) up to 36′

Incline Limits
  • 27° – 52°
  • (inclines above 45° may require local jurisdiction approval)
Drive System
  • Patented nylon polymer gear rack
  • Helical worm gear
View Full Technical Specs PDF

Additional Features & Compliance

Detailed technical specifications, safety features, and available options for reliable and comfortable stairlift operation.
Safety Features
  • Seat belt
  • Overspeed brake
  • Audible alert system
  • Swivel seat with interlock
  • Footrest obstruction sensor
Available Options
  • Retractable seat belt
  • Automatic folding rail
  • Chassis obstruction sensor
  • Key lock
  • Extra rail and brackets
  • Manual lowering tool
  • Power footrest
  • Power swivel
Warranty
  • Parts: 2 years
  • Gear rack: 10 years
  • Battery: 1 year
Certifications
  • ETL listed
  • CSA B44.1/ASME A17.5
  • Safety standard ASME A18.1
  • Rated commercial & residential

Explore the Pinnacle SL300

View the SL300’s design, features, and seamless operation.

Download Resources

Access all downloadable SL300 manuals, guides, and resources in one place.

Frequently Asked Questions

Answers to your real estate questions and concerns.

Still have a question?

dont worry we're free for consultation, just click button below.

Schedule Free In-Home Assessment
What is the process for buying a stairlift or elevator?

It starts with a conversation. One of our experienced team members will talk with you about your needs, your space, and your goals to help determine the best solution for you. From there, we’ll provide clear pricing, estimated lead times, and next steps—no guesswork, no pressure.

Installation time depends on the type of equipment:

  • Straight stair lifts can typically be installed in just a few hours.
  • Curved stair lifts usually take one to several days due to custom fabrication and fitting.
  • Vertical platform lifts and elevators may take multiple days, depending on the scope of the project
  • We’ll always give you a realistic timeline upfront.
Yes. We offer a one-year lease program, as well as rental options for straight stair lifts only. Our team can help you decide whether purchasing, leasing, or renting makes the most sense for your situation.
Safety features vary by product, but all of our equipment is designed with safety as a top priority. Depending on the model, features may include seatbelts, obstruction sensors, emergency stop functions, and battery backup. A member of our team will review the specific safety features of your selected product to ensure you and others are protected.

Maintenance depends on the product and how often it’s used. In most cases, we recommend annual or bi-annual preventative maintenance to keep your equipment operating safely and smoothly.

Yes. We have solutions designed to fit most staircases, including narrow, steep, or curved layouts. Our team will evaluate your staircase and recommend the best option for your space.
